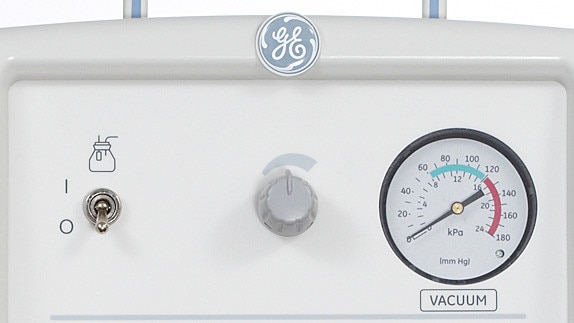

  • Integrated Suction

    A venturi vacuum supplies continuous suction range from 0 to 150 mm Hg (0-20 kPa) as per local resuscitation protocol for clearing of the oral, tracheal and nasal passages. Suction control knob lets you adjust desired negative pressure.
    hotspot tours-mic-giraffe star-gehc-giraffe-star_spotlight_1_hotspot_1.jpg

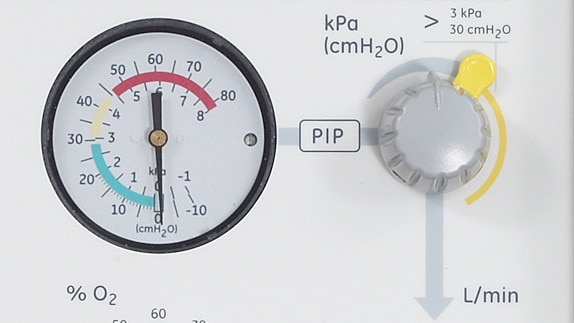

  • Integrated Pressure Manometer

    Conveniently located for viewing. Displays both the PIP (Peak Inspiratory Pressure) and PEEP (Positive End Expiratory Pressure).
    hotspot tours-mic-giraffe star-gehc-giraffe-star_spotlight_1_hotspot_2.jpg
  • PIP Control

    The Peak Inspiratory Pressure (PIP) control knob and a flow meter regulate medical gas supplied to a dedicated T-piece outlet.
    hotspot tours-mic-giraffe star-gehc-giraffe-star_spotlight_1_hotspot_3.jpg

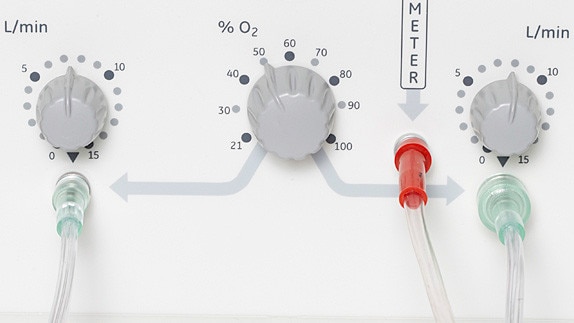

  • Integrated Blender

    Eliminates the need for an external system and additional tubing. Regulate FiO2 from 21 to 100% oxygen with the control knob located on the front panel.
    hotspot tours-mic-giraffe star-gehc-giraffe-star_spotlight_1_hotspot_4.jpg
  • Flow Meter & Control

    Primary flow meter and control knob let you set desired flow rate. A secondary flow meter outlet and control knob for free flowing oxygen blow-by.
    hotspot tours-mic-giraffe star-gehc-giraffe-star_spotlight_1_hotspot_5.jpg
  • Blended Gas Outlet Ports

    Primary gas outlet port to connect GE’s T-piece circuit. Auxiliary gas outlet port to connect Oxygen tubing for blended free flow Oxygen.
